WMZ (POWERLine)直線模組，滾珠導向

POWERLine WMZ 定位滑塊結合了齒型皮帶驅動的高動態性與絲杠支撐技術。另外，其塑料覆蓋帶系統可在臟亂環境中運行，使內部系統部件受到完全保護，且將摩擦減至最小。

產品介紹

Let Thomson Help You Make Your Selection!

Linear MOTIONEERING^® LMS Sizing & Selection Tool >
Introduction to Wheel-Guided Linear Units (Recorded Webinar) >

產品規格：

規格/軸的尺寸	WM60Z	WM80Z
截面尺寸（寬x高）: mm (in)	60 x 60 (2.4 x 2.4)	80 x 80 (3.2 x 3.2)
皮帶型號	20 ATL 5	25 AT 10
最大行程長度: mm (in)	4000 (158)	5400 (213)
最大直線速度: m/s (in/s)	2.5 (98.4)	5 (197)
最大加速度: m/s2 (in/s2)	20 (787)	20 (787)
重復精度: ± mm (in)	0.05 (0.002)	0.05 (0.002)
最大輸入速度: rpm (轉/s)	1250	885 (14.8)
工作溫度: °C (°F)	0 to 80 (32 to 176)	0 to 80 (32 to 176)
最大動態負載(Fx): N (lbf)	850 (191)	1470 (331)
最大動態負載 (Fy): N (lbf)	1400 (315)	3000 (674)
最大動態負載(Fz): N (lbf)	1400 (315)	3000 (674)
最大動態力矩(Mx): Nm (lbf-in)	25 (221)	150 (1328)
M最大動態力矩(My): Nm (lbf-in)	50 (443)	300 (2655)
最大動態力矩(Mz): Nm (lbf-in)	50 (443)	300 (2655)
最大驅動軸力(Frd): N (lbf)	150 (33.7)	600 (134.9)
最大驅動軸力矩(Mta): Nm (lbf-in)	17 (150.5)	40 (354)
皮帶輪直徑: mm (in)	38.2 (1.5)	54.11 (2.13)
軸每旋轉一周行程: mm (in)	120 (4.7)	170 (6.7)
重量: kg (lb) 零行程單元重量每100 mm行程的重量每個滑架重量	4.3 (9.5) 0.45 (1.0) 1.25 (2.8)	11.2 (24.7) 0.8 (1.8) 3.4 (7.5)

WMZ 特性

堅固的滑軌
集中潤滑系統

自動調節塑料防塵帶

手冊

Linear Units Quick Selection Guide	1333 KB	Email
Linear Motion Systems	1257 KB	Email
Linear Motion Systems	1425 KB	Email
Linear Units Overview	1057 KB	Email
Linear Units Quick Selection Guide	427 KB	Email
Linear Units Overview	1573 KB	Email

產品目錄

Linear Motion Systems	9163 KB	Email
Linear Motion Systems	9214 KB	Email
Linear Motion Systems	9107 KB	Email
直線運動系統	11683 KB	Email

Average Load Calculation (Release 3)	107 KB	Email
Linear Units Sizing & Selection	823 KB	Email
Mechanical Motion Calculation (Release 6)	302 KB	Email
Move Motion Profile Calculation (Release 3)	93 KB	Email
Multi-Axis Cycle Time Calculation (Release 3)	98 KB	Email
WM & WV Sizing & Selection (Release 0)	260 KB	Email

手冊

POWERLine WM_ZRT Mounting and Maintenance Instructions

1165 KB

The Linear Motion Systems Product Selector is Temporarily Unavailable

Click the button below to use the newest edition of our industry's most advanced sizing and selection tool for linear motion system: LinearMotioneering.

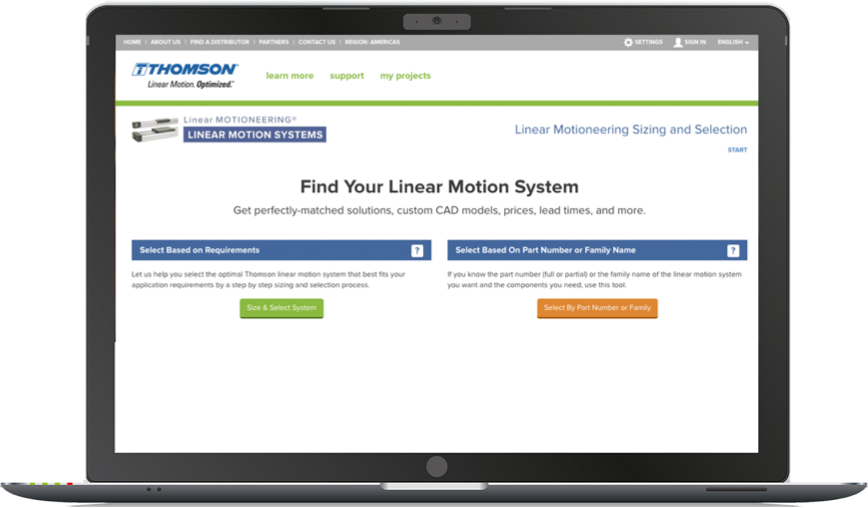

Image above: The LinearMotioneering Landing Page
